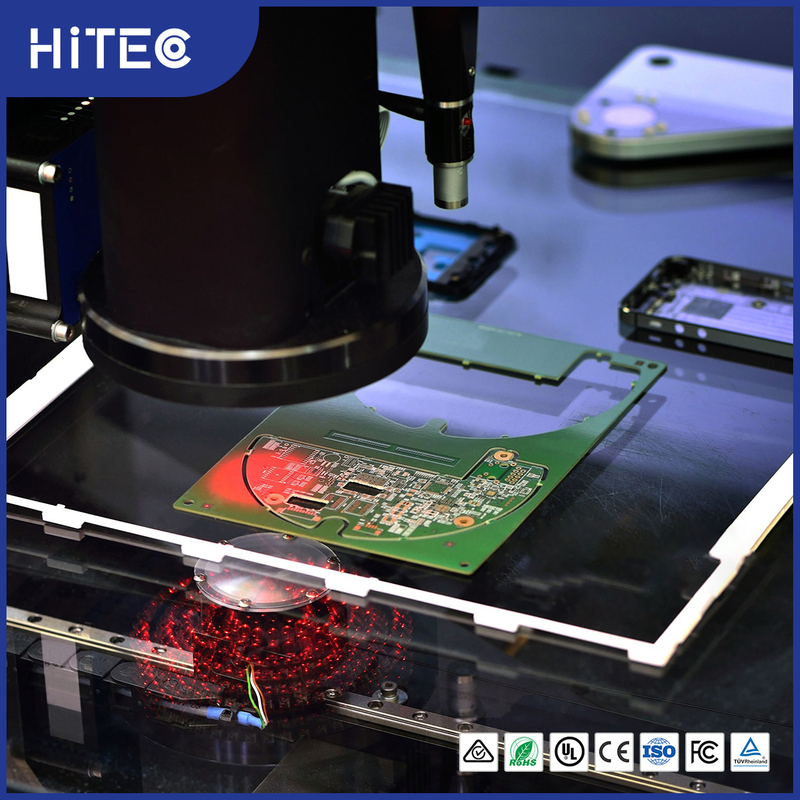

The inspection equipment automatically scans the product through the camera, then captures the image, compares the tested inspection points with the qualified parameters in the database, and determines the presence or absence of the original parts on the product.
Product feactures
Fast detection speed Low miscarriage of justice Adaptable to a wide range of products
Product advantage
1. Convenient to change production, compatible size 100*100-300*500 PCB board
2. Flexible detection, can be directly connected with the front and rear end equipment

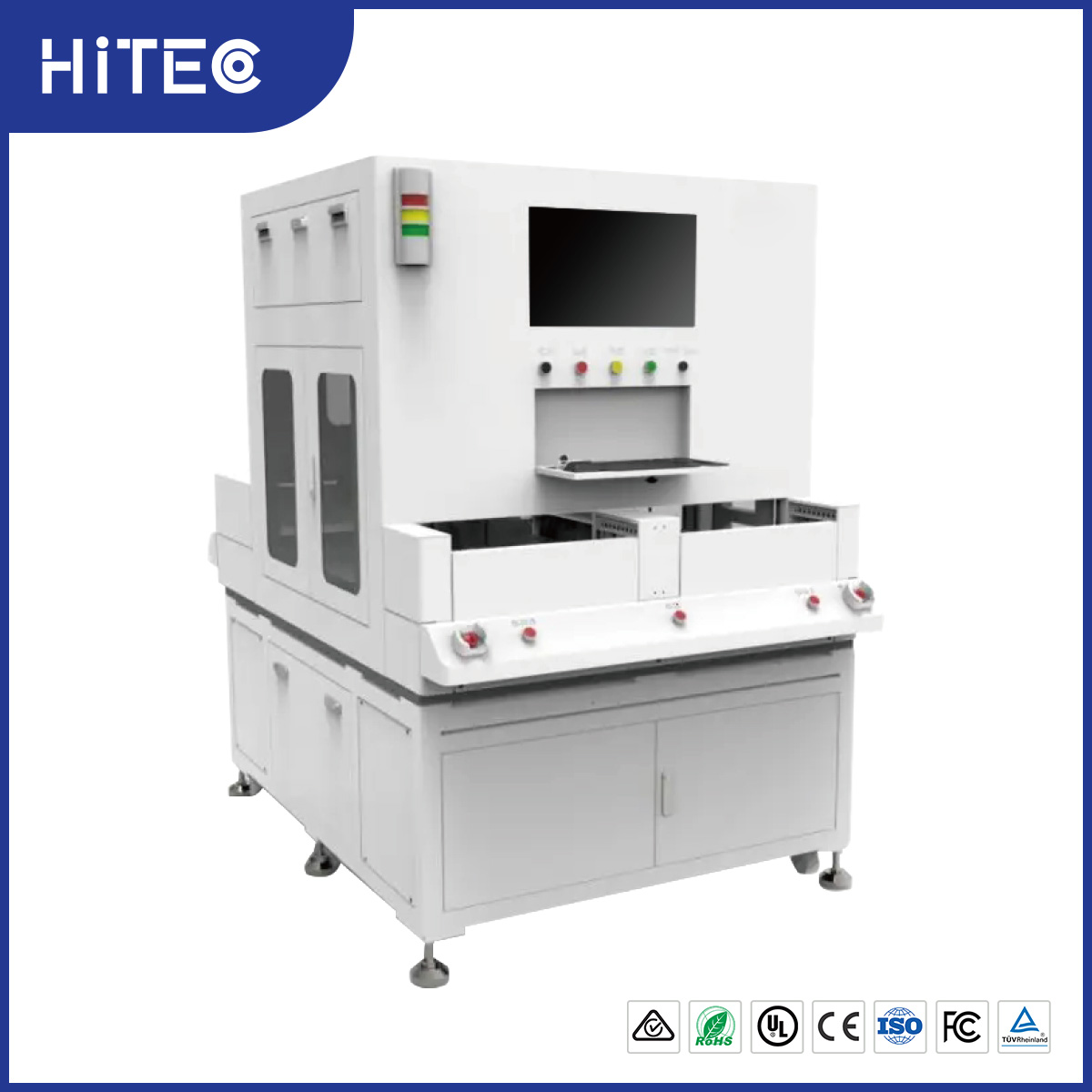

Equipment parameters
| Equipment dimensions | L360mm, W550mm, H1800mm |
| Capacity UPH | 1200PCS/H |
| Electricity requirements | 220V/50HZ/2KW |
| Compressed air demand | 0.5-0.7Mpa |
| Equipment weight | 600KG |
| Applicable product dimensions | 80*80-320*240 |
| Failure rate | ≤ 2% |
| Control system | PLC.PC |

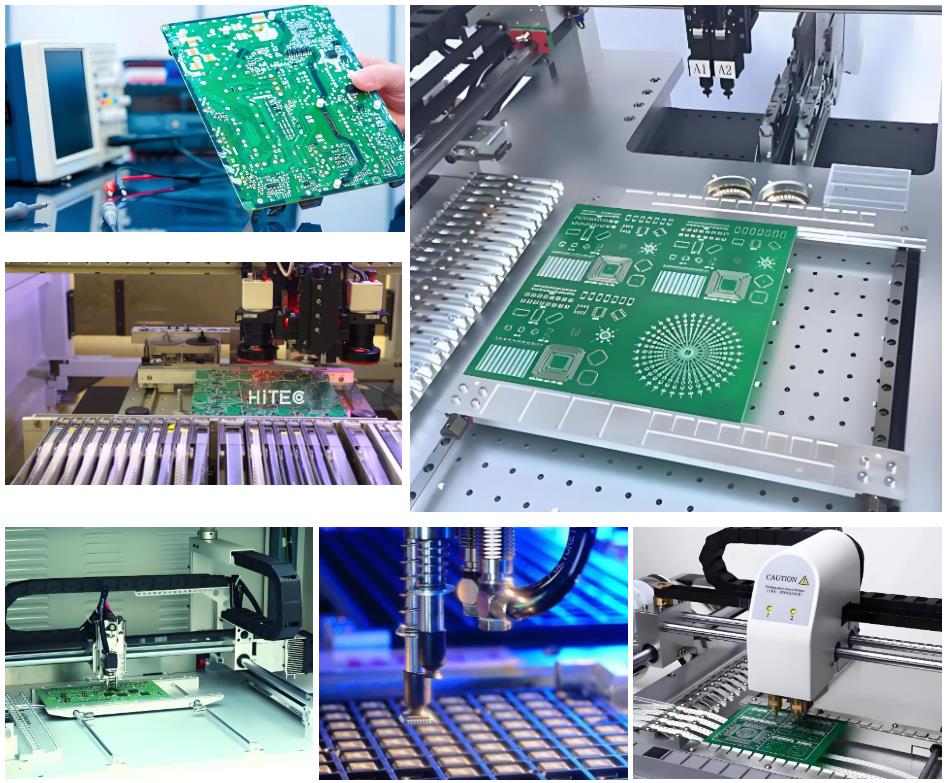

Applicaions
