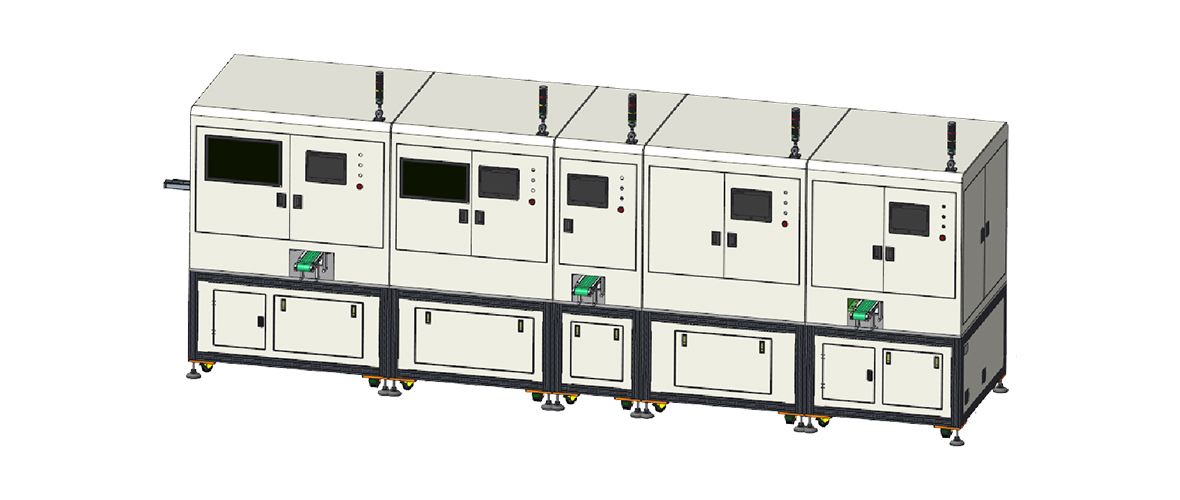

Mainly completed the LTE module shield assembly, code reading, label tearing, 3D scanning to check the mask surface bulge problem, download information, attach new labels, comparison test, ICT test and other processes.

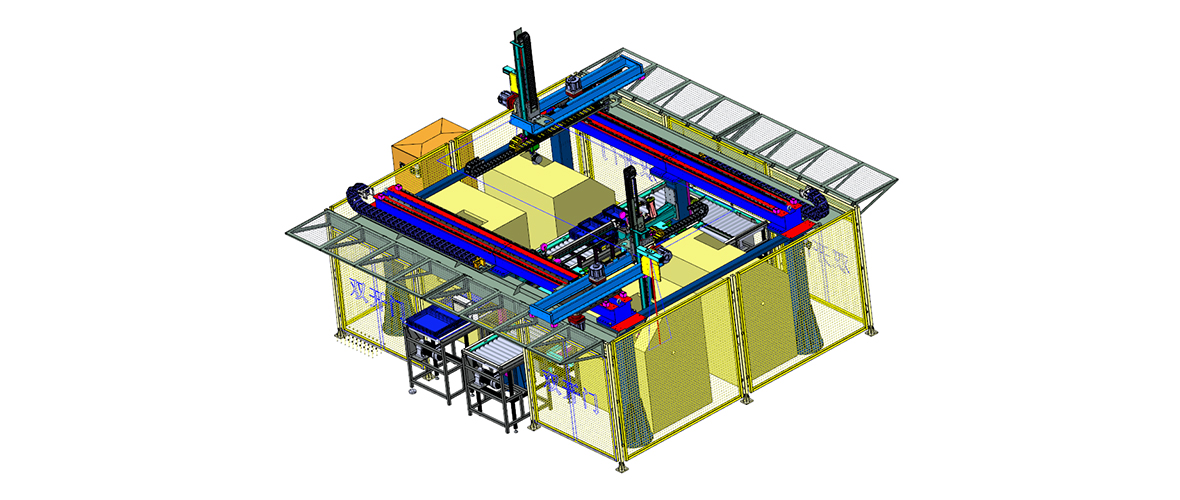

Manually send the billet turnover box to the feeding roller line, and the roller line will transport the turnover box to the feeding location area. The truss manipulator will automatically remove the billet to be processed from the material box and move it to the lathe to complete the finished material unloading and billet loading actions, and then call the lathe program to automatically process, and then stack the processed products and put them in the box. Finally, it is conveyed to the end through the cutting roller line to prompt manual handling.
Docking the original customer site automata processing line body, improve the process function of the line body, the processed products for cutting fluid cleaning, drying, and then complete the size of the processed parts, aperture, appearance defects and other tests, and to achieve classification of material; When the back-end detection line body anomalies occur continuously, the feedback is sent to the machining line body, prompting manual processing to confirm the anomaly.

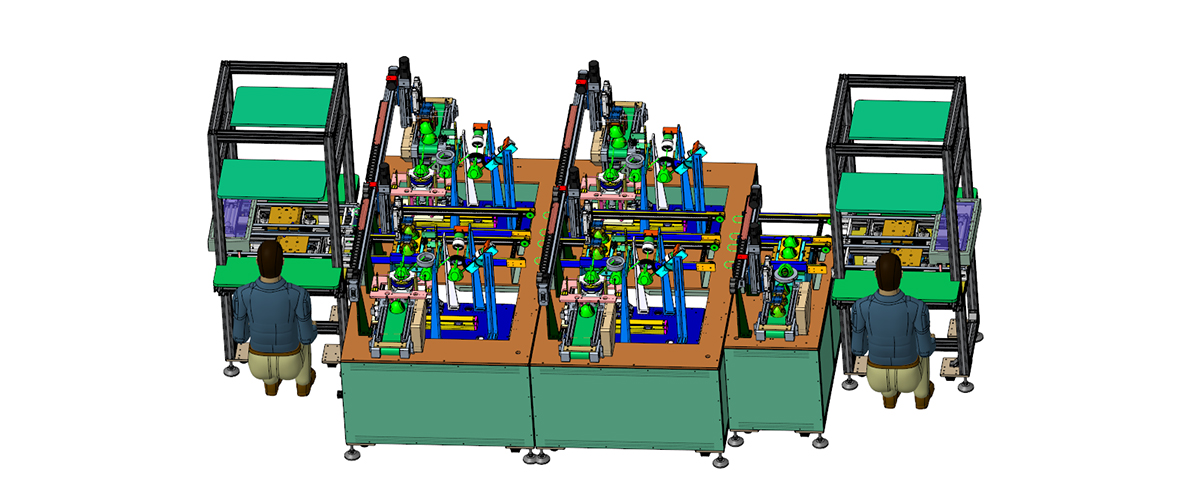

The operator sitting in the loading station puts the product into the circulating tooling on the flexible conveying line, and the conveying line sends the tooling into the testing equipment. When arriving at each testing station in turn, the positioning module lifts the tooling, and the handling module moves the product to the detecting CCD position to complete the 360° appearance inspection of the product circle, and then moves the product back to the circulating tooling. The circulating tool flows to the blanking station, and the operator takes out the product for blanking.
