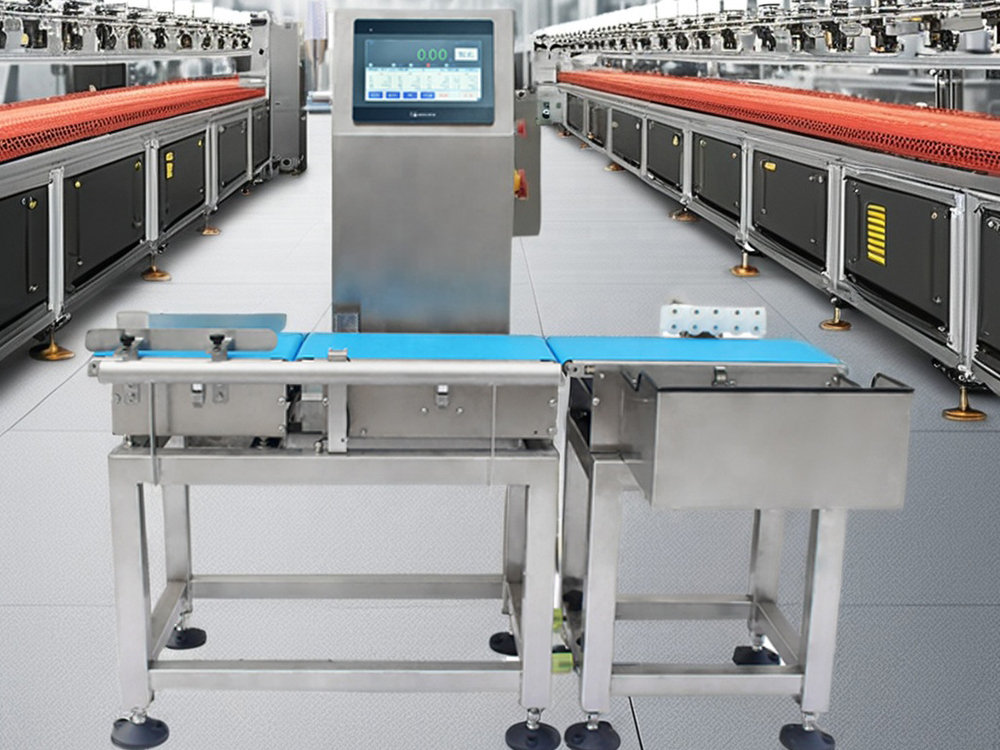

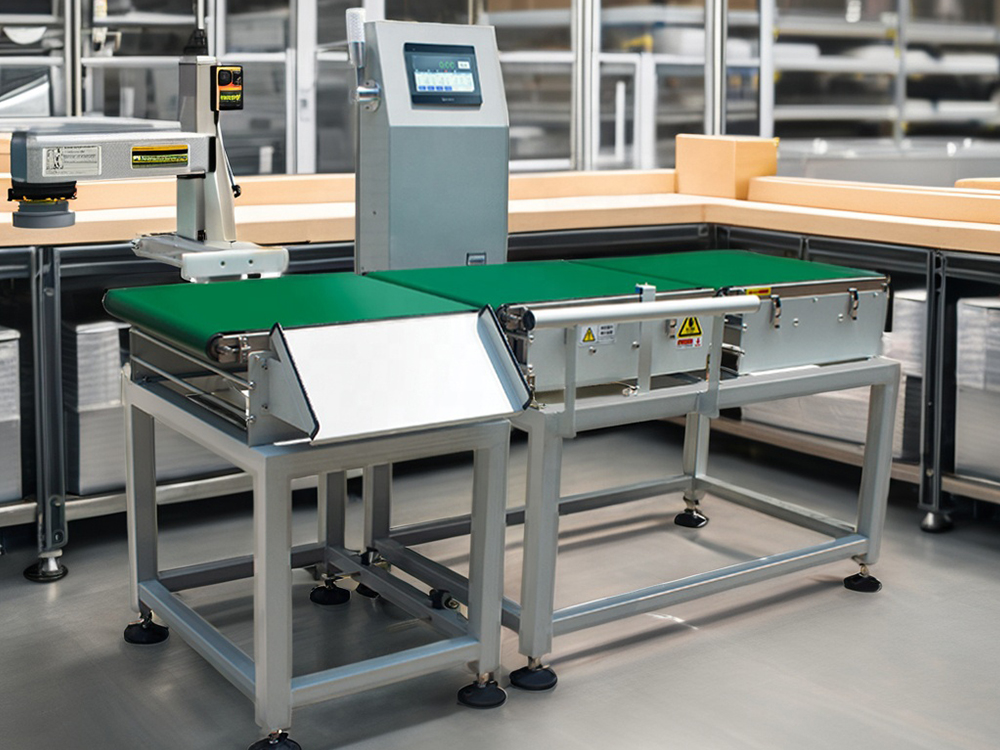

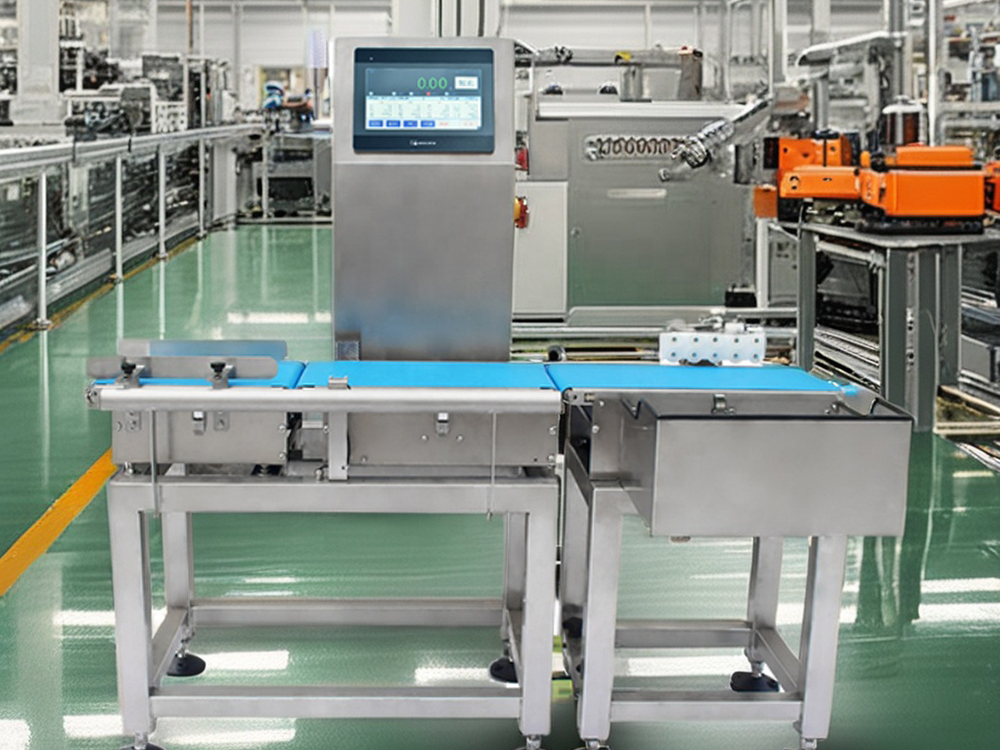

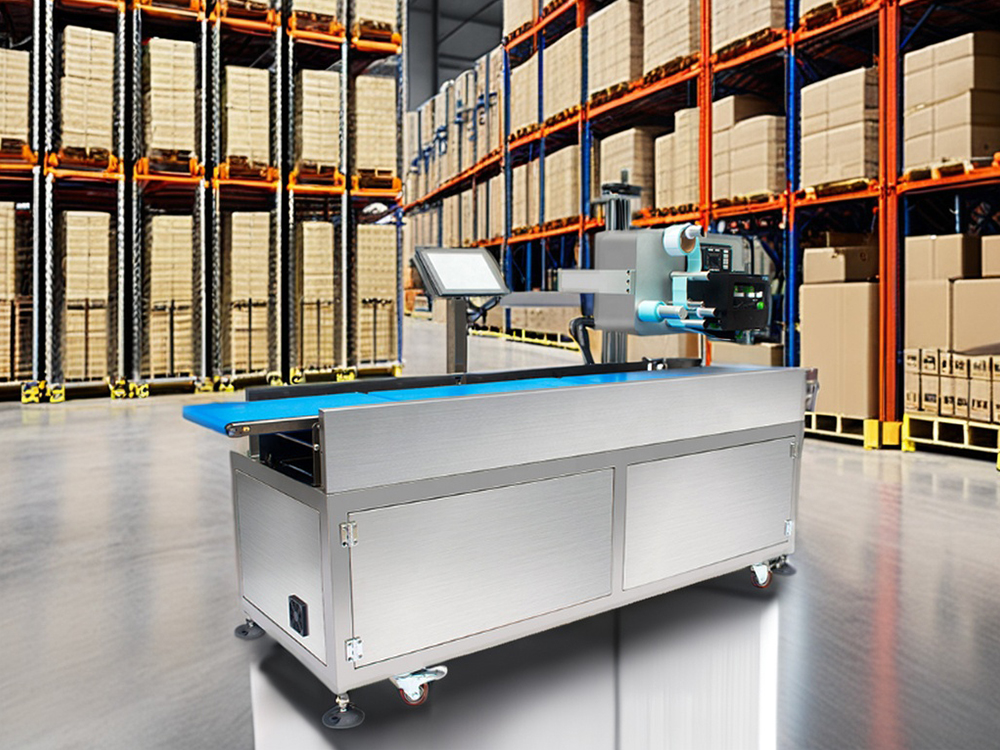

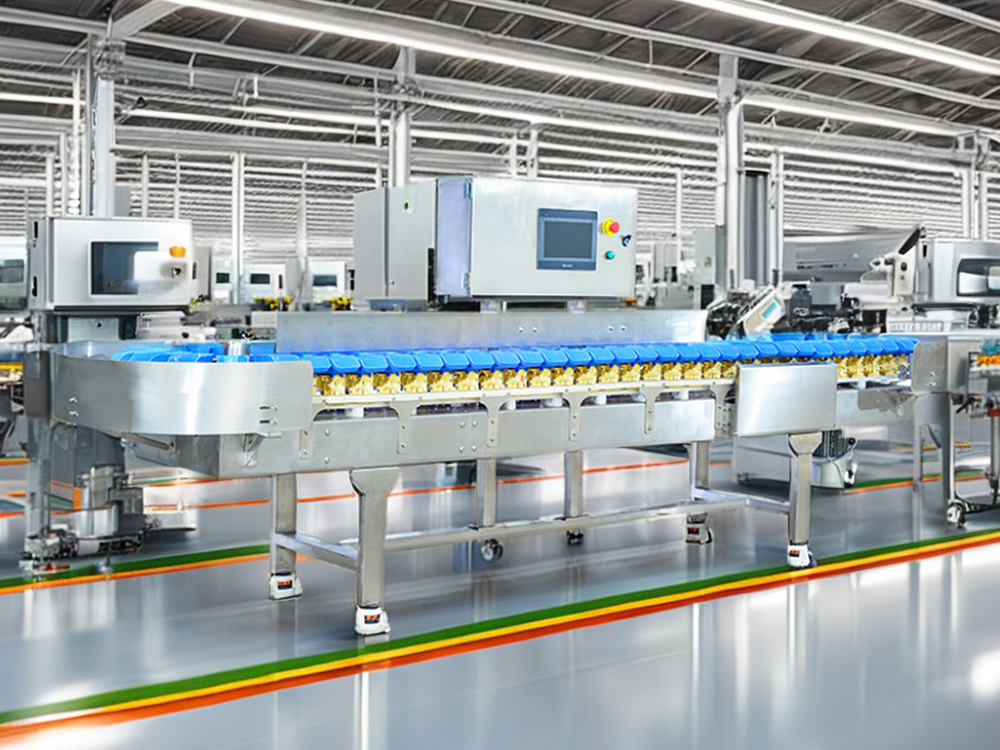

Hitec checkweigher is not only limited to weighing, it is a set of indispensable testing equipment on the production line, mainly to solve the quality problems. such as missing parts encountered in the production operation; at the same time, it can also be used in logistics electricity In the business line, the function of high-speed weighing is realized, thereby reducing the tedious process of manual operation; as long as the problem can be solved by detecting the weight, the Satori checkweigher can be used first; because it is reliable, stable, efficient and accurate, Occasions can bring you great convenience and create huge economic benefits for customers.
Scope of application

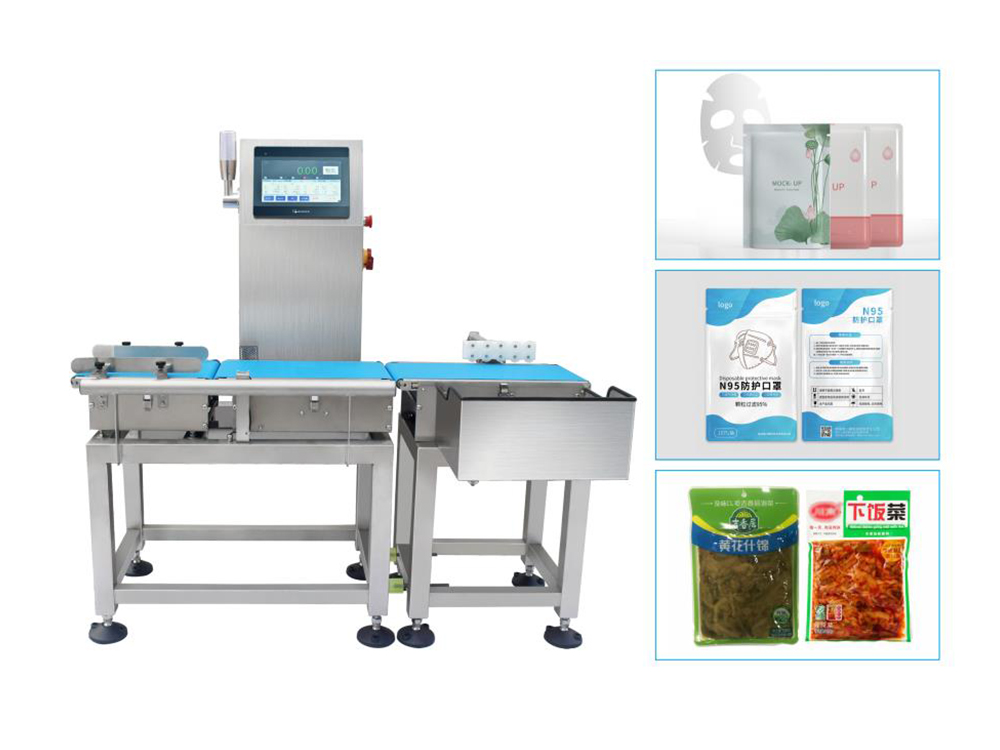

This product is suitable for testing the individual weight of small weight food such as potato chips, fruits, dried fruits, etc., to avoid overloading or missing loading phenomenon. At the same time, it also has the function of detecting whether food accessories are missing, such as spoons, straws, moisture-proof agents and other small accessories in the package, to ensure the integrity of product accessories. The equipment is widely used in electronics, pharmaceutical, food, beverage, health care products, daily chemical, light industry, agricultural and sideline products and other industries.
Main Features
Report function: Built-in report statistics, reports can be generated in EXCEL format
Storage function: 100 kinds of product test data can be preset, and 30,000 weight data can be traced
Interface function: Equipped with RS232/485, Ethernet communication port, support factory ERP and MES system interaction
Multi-language selection: Multiple languages can be customized, the default is Chinese and English
Remote control system: Reserve multiple I input and output points, multi-function control production line flow, remote monitoring start and stop
Product advantage
Equipped with adjustable baffles, different sizes of product limits can be easily changed
Three-level operation rights management, support self-password
Friendly operation interface based on touch screen, humanized design
Inverter control motor, speed can be adjusted according to need
The system has the functions of danger notification, emergency stop button and protective cover, and can be combined with automatic packing machine, pillow packing machine, bag packing machine, production line, automatic filling machine, vertical packing machine, etc
Equipment parameters
Weight range：1-3000g
Weighing section dimensions：L450mm*W 230mm
Overall size：1300x900x1400mm(length, width and height)
Belt speed：5-90 m/min
Air pressure interface：p8mm
Case material：Stainless steel 304
Transport direction：Facing the machine, left in and right out
Alarm mode：Sound and light alarm and automatic elimination
Culling mode：Air blow, push rod, swing arm, drop, up and down version, etc. (customizable)
Optional function：Real-time printing, code reading sorting, online coding, online reading, online labeling
