3D-Watch Lower Case Glue Path Inspection

Pain point:

In the assembly process of smartwatch, the state of glue application (leakage, broken glue, glue bias, glue height over the limit, etc.) will affect the assembly quality of the product, and the traditional algorithms can't differentiate the color of the glue and the product when the color of the glue and the product are close to each other, so it is impossible to achieve stable detection.

Advantage:

It can realize the extraction of glue path by height, width and volume information, which greatly improves the stability of detection.

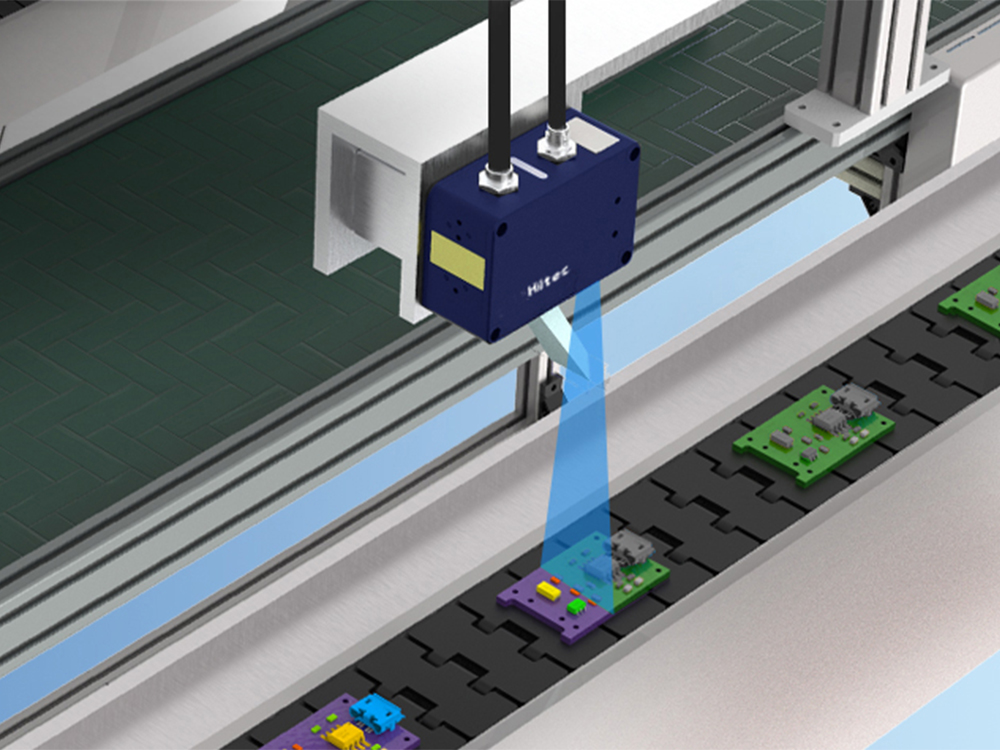

3D rendering Processing charts 3D rendering Processing charts

Product features

1. Strong anti-interference ability, not affected by the ambient light at the site

2. It can solve the problem of low contrast imaging of vinyl and black shell

3. The rotary scanning method allows for better imaging of the adhesive path

Technical parameters

• Visual inspection accuracy of 4~6um

• 50% increase in efficiency

• Detection CT < 2 sec. for single product

• 100% detection rate

• Overkill rate <3%
